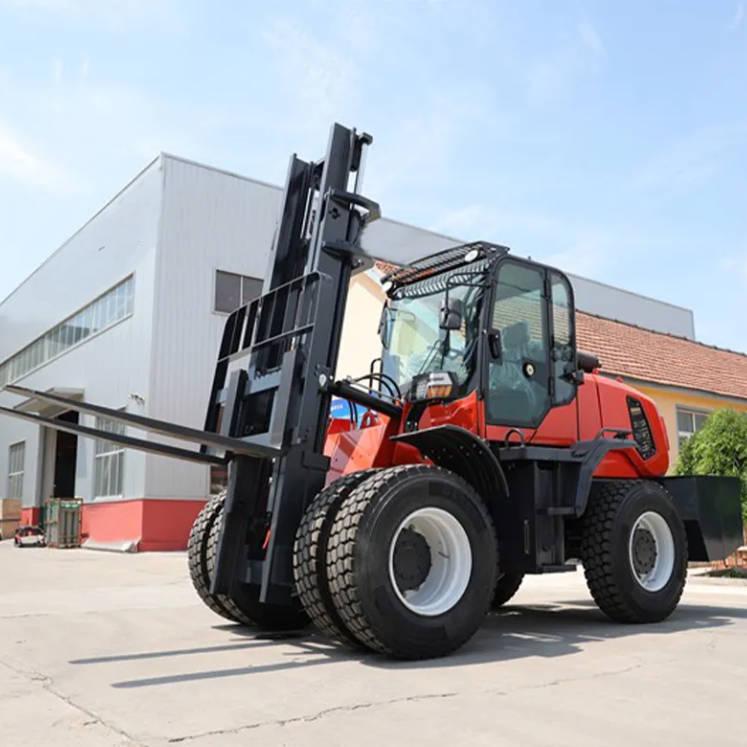

Chariot élévateur diesel tout-terrain 4×4 3 tonnes 4 tonnes 5 tonnes
Dimensions | 4200*1800*2700mm |
Engine model | YUNNEI YN27GBZ(490 Turbocharged) |
Fork length | 1220mm |
Rated lift weight | 3500kg |
Turning radius | 3500mm |
Platform ground clearance | 300mm |
Axle | Small wheel side weight cast steel bridge |
Tire | 20.5/70-16 |
Gantry width | 160mm |
Overall weight | 4200kg |
Engine power | 58kw |
Gradeability | ≤38° |
Rated lifting height | 3000-6000mm |
Front ground clearance | 250-350mm |
Drive type | 4-wheel drive |
Gearbox | 265 Double high and low speed large pump torque converter |
Frame | Hinged thick 3mm |
