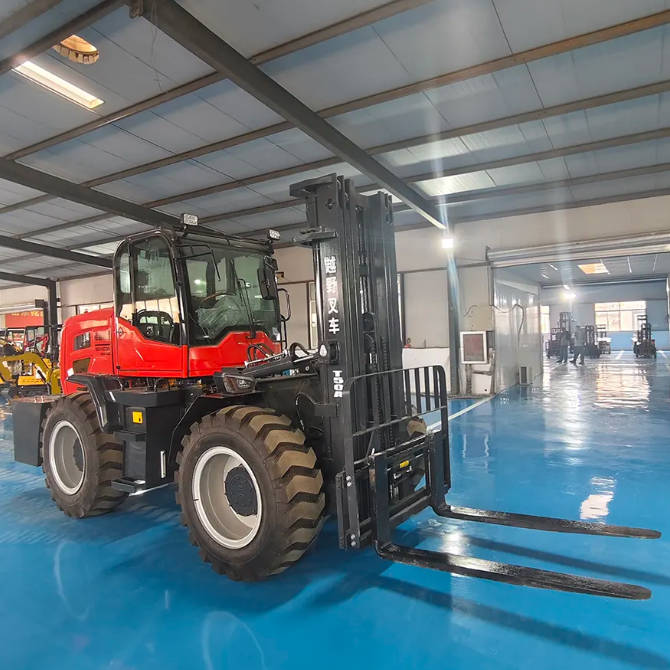

New EPA Euro 5 Diesel Forklift Truck All Lift 4WD 5 Ton Off-Road Rough Terrain

Nouveau chariot élévateur diesel EPA Euro 5 All Lift 4WD 5 tonnes tout-terrain

1—–With advanced technology and design;
2—– High quality steel for frame and mast, not easy to deform
3—– LED lights for all working lights, easy to see in night
4—–Double AC motor , less noise
5—–Wear-resisting solid tire
6—– Thickened height guard
7—–powerful branded batterym,optional for lead acid battery, lithium battery and traction battery
8—–High voltage ,low current design , prolong the lifespan of electric components
9—–Powerful in climbing to climp slop, with gradeability over 30%.
10—-Comfortable seat with safety belts,with large operation space.
11—-All use lithium battery, charging efficiency is higher, more lightweight, only takes 2.5 hours to recharge

Lifting weight
5000KG
Lifting height
3000-6000MM
Driving method
Four-wheel drive
Engine power
76-102KW
Overall weight
5800KG
Turning radius
3500MM
Climbing ability
<35°
Distance between the front section of the gantry and the ground
300-380MM
Ground clearance at the center of the wheelbase
350MM
Fork length
1220-1820mm
External dimensions
4500x2200x2950MM
Tire model
16/70-24 High-pressure tire

Besoin de plus d'informations ? Contactez-nous !
