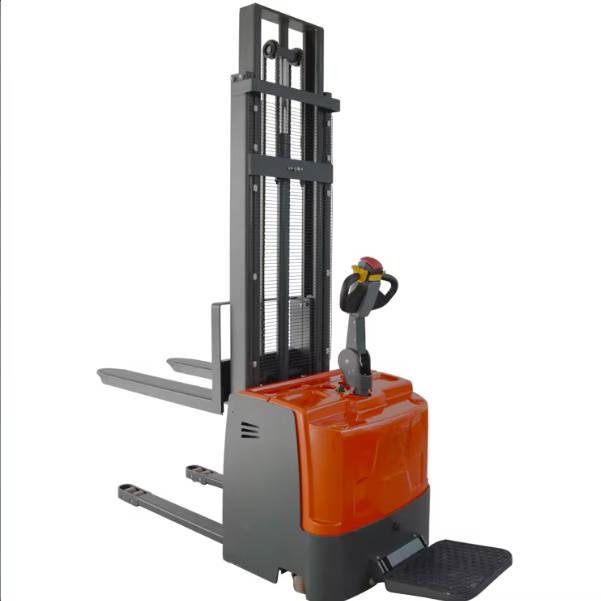

2 Tons Full Electric Pallet Truck Small Forklift
Performance | Maximum load capacity | kg | 1500/2000 | |
with load center at | mm | 600 | ||
Travel speed without load/with load | km/h | 5/4.5 | ||
Lifting speed without load /with load | km/h | 110/80 | ||
Lowered speed without load /with load | mm/s | 100/110 | ||
Ascend slope ability without load /with load | % | 8/5 | ||
Dimensions | Overall length/width of frame(without platform) | mm | 2180/850 | |
Wheelbase | mm | 1370 | ||
Fork size（length *width*thickness） | mm | 1150*170*65 | ||
Fork outside width | mm | 560/685 | ||
Min frounf height | mm | 30 | ||
Fork lowered height | mm | 90 | ||
Minimum turning radius | mm | 2170 | ||
Minimum intersecting aisie | mm | 3050 | ||
Tire | Front wheel | mm | 80*70 | |
Drive wheel | mm | 230*80 | ||
Caster wheel | mm | 115*55 | ||
Electrical components | Drive motor Rated output/AC motor | kw | 1.5 | |
Hoist motor Rated output/DC motor | kw | 2.2 | ||
battery | Voltag | V | 24 | |
Capacity | AH | 210 | ||
Weight | kg | 195 | ||
Mast Type | Max.Fork height | Mast Lowered | Mast Extended | Weight：kg |
CDD15E/CDD20E | CDD15E/CDD20E | CDD15E/CDD20E | CDD15E/CDD20E | |
Simplex Mast (2stage) | 1600 | 2080 | 2080 | 860/875 |
2000 | 1580/1480 | 2550/2450 | 890/905 | |
2500 | 1830/1730 | 3050/2950 | 920/935 | |
3000 | 2080/1980 | 3550/3450 | 990/1005 | |
3500 | 2330/2230 | 4050/3950 | 1040/1055 | |
